Rubber Bellows Manufacturer in India
Royal Engineering Corporation is a skilled Rubber Bellows manufacturer in India, certified with ISO 9001:2015 and have more than 20 years of experience in this product. We offer high quality Bellows and manufacture from 4″ to 80″ N.B. Get Rubber Expansion Bellows at best price from us and we can manufacture in several diameters, types variety, custom colors, different shapes & sizes. Our manufacturing range with technical specification is described below :
| Particulars | Value |
|---|---|
| Square shape | ID / NB up to 4000 mm. |
| Rectangular shape | ID / NB up to 3000 X 4000 mm. |
| Round shape | ID / NB up to 2000 mm. |
| Working Temperature | 150° C |
| Working Pressure | Up to 45 Kg. / cm² | Bellow Length | Up to 1000 mm. |
| Flange Outer Dia. | Up to 1500 mm. | Rubber grades used | Neoprene, EPDM, Natural, Silicon, Hypalon, Nitrile, Buna-N, NBR etc. | Flange materials used | Mild Steels and Stainless Steels |
Types of Rubber Bellows are manufactured by us
Rubber Expansion Bellows are available in many types and they also can be custom designed in various shapes, materials and functional styles to meet specific application requirements. Following types of Rubber Bellows are manufactured by us for Indian buyers :

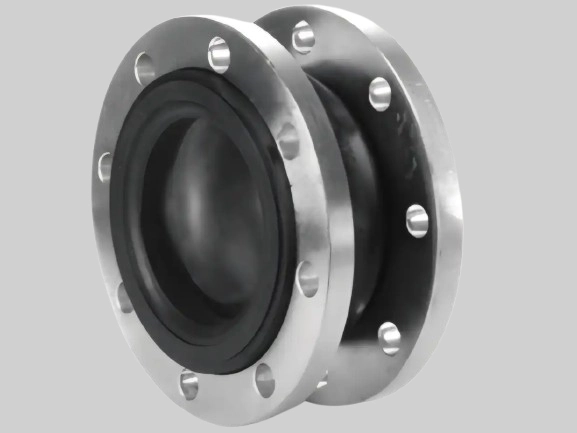

Single Arch Expansion Bellow : This is a flexible pipe connector with one curved convolution, have just one flexible arch, designed for optimal vibration absorption and noise reduction in industrial piping systems. These are durable, versatile solutions designed to absorb vibration, made from high quality rubber compounds, small volume, light weight, good flexibility and convenient installation and maintenance. They are used for absorption of thermal expansion and contraction in pipelines. Our manufacturing capacity – N.B. up to 2000 mm., Working Temperature up to 150° C and Working Pressure up to 45 Kgs.

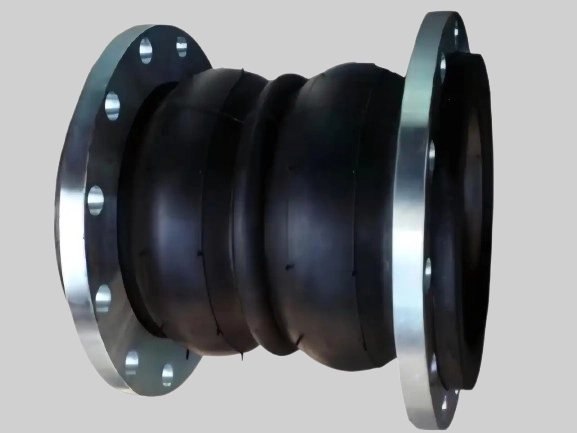

Double Arch Expansion Bellow : Flexible Expansion Joints featuring two arches (have two or more flexible arches) of molded rubber, available in Round – Rectangular – Square shape. They are designed for accommodates significant thermal expansion, angular misalignment, lateral movement while maintaining pressure integrity and for optimal vibration absorption and noise reduction in industrial piping systems. It is manufactured using premium materials and precision engineering to ensure superior flexibility, durability and long service. Our manufacturing capacity – Nominal Bore up to 1800 mm., Working Temperature up to 160° C and Working Pressure up to 48 Kgs.

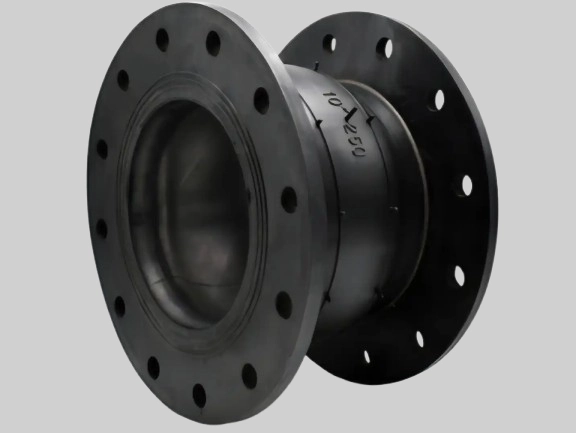

Wide Arch Expansion Bellow : This is a flexible pipe connector with a larger, wider curved middle section (the arch), made from a soft rubber material that is bonded to the ID of the traditional arch. This type is hand built Rubber Expansion Joint with a long flowing wide arch, features greater movements than the standard spool arch type, designed to absorb large all directional movements and provides several times the movement capability of standard narrow arch style joints. Our manufacturing capacity – Inner Dia. up to 1900 mm., Working Temperature up to 140° C and Working Pressure up to 40 Kgs.
Double / Twine sphere Expansion Bellow : It is a flexible plumbing and industrial piping connector, is a flexible unit that is manufactured from EPDM, used for greater movement absorption. It allows greater compression, elongation and deflection, used exactly as their single sphere counterparts. They are function by accommodating axial, lateral and angular movements within piping systems and handle more movement than a Metrasphere. It is actually designed to handle pressures up to 300 PSI, to absorbs & reduces vibration and shock in the system.
Fabric Reinforced Expansion Bellow : It is a flexible, corrugated connection joint built with an inner synthetic or glass fabric core layered and bonded with elastomeric rubber. is a flexible element combined with metal and/or textile reinforcements. made from high quality fabrics. Flexible, lightweight, abrasion resistant, weatherproof, easy to install. manufactured from tough synthetic fabric and nylon laminate. made entirely of rubber and another reinforced with fabric. made from high performance industrial fabrics. We are supplier with the capacity – Inner Dia. up to 1800 mm., Working Temperature up to 130° C and Working Pressure up to 35 Kgs.

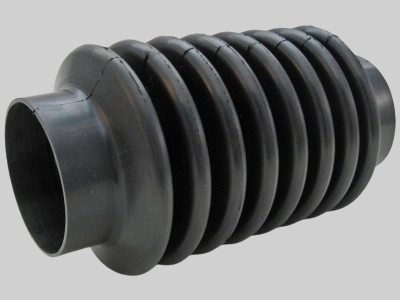

Molded Expansion Bellow : They are flexible, convoluted protective covers and expansion joint, flexible seals that protect mechanical structures, used in piping systems, ideal for protecting machine from dust, water oil, grease acids, bleaches and splatter. It is flexible, protective components designed to seal moving parts and absorb movement, vibration and misalignment, basically used to keep dust and humidity out of moving mechanical parts. This is manufactured from high grade of rubbers and widely used in industrial & mechanical applications. Our manufacturing range with the capacity – Inner Dia. up to 1900 mm., Working Temperature up to 145° C and Working Pressure up to 36 Kgs.
Hand built Expansion Bellow : This is a custom crafted flexible connector or hand wrapped custom built construction, used in large piping systems, ducts and machinery to absorb vibration, noise, and thermal movement. It is designed to absorb motion and displacement between pipe flanges and designed for any bore size, length & liner materials. It have full faced rubber flanges and split backing flanges, ensuring a robust and reliable connection. These are mainly designed to neutralize movement, compensate for small amounts of misalignment and reduce noise and vibration in pipelines. Our supply range with the capacity – Inner Dia. up to 2100 mm., Working Temperature up to 160° C and Working Pressure up to 38 Kgs.
Dip Molded Expansion Bellow : It is a flexible, accordion shaped protective cover made by submerging a heated metal form (mandrel) into liquid latex or synthetic rubber, then curing and peeling the seamless part off the form. This is designed to accommodate movement, compensate for misalignment, absorb vibration and protect sensitive components from dust, moisture and others. They are widely used for protecting screws and shafts in machine tools. We offer with the capacity – Inner Dia. up to 2200 mm., Working Temperature up to 140° C and Working Pressure up to 35 Kgs.
Reducer Expansion Bellow : This is a flexible pipe connector with unequal end diameters, provides effective vibration control and flexibility and used to join pipes of different diameters, made up of fabric reinforced rubber main body and metal flange or wire buckle joint. It combines the benefits of flexible bellows with pipe size reduction. Max capacity we manufacture – Inner Dia. up to 2150 mm., Working Temperature up to 130° C and Working Pressure up to 30 Kgs.
Offset Expansion Bellow : This is a flexible connector installed in piping systems to absorb lateral misalignment, axial movement and vibration. Max capacity we can supply – Inner Dia. up to 1900 mm., Working Temperature up to 120° C and Working Pressure up to 25 Kgs.
Floating Flange Expansion Bellow : It is a flexible pipe connector with loose, rotatable metal flanges, design allows for easier installation on existing piping systems, compensates for angular misalignment and simplifies replacement. Their rubber construction allows them to handle various types of movement, including axial, lateral & angular. They are specialized components designed to accommodate thermal expansion and contraction in piping systems. Our production capacity – Inner Dia. up to 1850 mm., Working Temperature up to 125° C and Working Pressure up to 30 Kgs.
Rubber Bellows specifications required in manufacturing
In India, manufacturing of Rubber Bellows are required exact technical specifications to ensure they absorb vibration, handle pressure and compensate for pipe or machinery movement properly. Key parameters include dimensions, material compounding, reinforcement layers and operating limits. Details with technical data is described below :
Nominal Bore (NB) or Inner Dia. (ID) : It is variable widely by application, ranging from small mechanical and machinery dust boots (10 – 100 mm.) to large industrial pipe lines (40 – 2000 mm.). Measuring the exact NB or ID requires matching the inner opening to your specific pipe, shaft or housing diameter. We can supply with up to – Round : 2 meters, Square : 4 meters & Rectangular : 3 X 4 meters.
Bellow length : It has standard end to end measurement that based on both side pipe gap where the Bellow will fit. To measure the accurate length, use a tape measure or caliper to find the neutral length. Also record the compressed length, extended length. We offer Bellows up to 1000 mm. of natural length.
Bellow shape : Round, Square and Rectangular are normally used. It is depends on application, the type of motion it needs to absorb (axial / lateral / angular) and the geometry of the equipment or pipes to protect. Our supply range for Round is 2 meters, Square is 4X4 meters and Rectangular is 4X3 meters.
Working Temperature : It is typically ranges from -40° C to 120° C but the exact limit depends heavily on the specific elastomer compound used in it’s construction. Standard general use Bellows use around 70° C to 100° C, while specialized high performance rubber types can tolerate higher or lower extremes. This is to determine by the system’s actual operating and peak fluid temperatures and match them against the explicit thermal limits of the elastomer compound used in the Bellow. We can manufacture up to 150° C.
Working Pressure : It’s typically operate at 10 bar to 16 bar at ambient temperature, with heavy duty or specialized designs reaching up to 25 bar. It is a manufacturer rated limit determined by fabric reinforcement, elastomeric compound strength and burst test safety factors. Our supply capacity is up to 45 Kg. / cm².
Flange Outer Dia. : The integrated metal flange depends directly on its nominal bore size and the matching pressure standard. For instance, a small 40 NB Bellow often has a flange outer diameter around 90 – 120 mm., whereas a larger 1000 NB Bellow features an outer flange diameter of at least 600 mm. Our supply range is up to 1500 mm.
Rubber grade : It is generally use different grades of rubbers based on environment, chemical exposure, temperature range, mechanical movement requirements and the fluids or gases passing through them. The most common grades we use – Neoprene, EPDM, Natural, Silicon, Hypalon, Nitrile, Buna-N, NBR etc.
Flange material : It is used metallic or integrated rubber flanges for pipeline attachment. Common metallic flange materials include Carbon Steels – ASTM A105 / A105N, ASTM A36, ASTM A350 LF2, ASTM A694, ASTM A516 etc. for standard water and HVAC applications and Stainless Steels – SS 304 / 304L, SS 316 / 316L, SS 321, SS 347 / 316Ti etc. for corrosive environments or hygienic processes. Some designs also feature full face integrated rubber flanges.
Rubber Bellows supplier in India for various industries
Royal Engineering Corporation the leading Rubber Bellows supplier in India, which are widely utilized across automotive, water treatment, HVAC, chemical processing and heavy industrial manufacturing sectors. They are used for Pipe lines or Duct line and machinery to absorb vibration, compensate for thermal expansion and pipe misalignment and seal moving mechanical parts against dust, water and debris. We supply Bellows for the following sectors as described below :
Steel plants : Rubber flexible connectors used here to absorb pipeline vibration, compensate for thermal expansion, contraction and correct minor misalignment in heavy duty fluid, gas & slurry handling systems. They take care of the thermal expansion plus tightening brought on by high temperature liquids while likewise made up for vibration from hefty equipment.
Cement plants : Expansion Bellows are used here to prevent dust leakage, absorb mechanical vibration from heavy machinery, compensate for pipe misalignment, manage to reduce thermal expansion & contraction. These bellows offer superior abrasion and chemical resistance, used to safeguard the telescopic loading spout system.
Petro-Chemical refineries : Rubber made Bellows are used here to absorb pipe movements, high temperature & pressure, stop machinery vibration, correct small misalignment during setup and resist wear from cooling water & slurries. Bellows are essential for managing the complex reactions and processes.
Thermal power plants : Rubber Expansion Joints are used here to absorb thermal expansion & contraction, isolate severe mechanical vibrations from heavy rotating equipment, correct minor piping misalignment. They absorb thermal expansion, contraction of pipes, absorb noise and thermal movements and act as expandable/collapsible shields for steering racks.
HVAC systems : Rubber flexible joints are widely used on pump suction/discharge lines, HVAC to absorb mechanical vibration, compensate for thermal expansion & contraction in pipes and correct minor installation misalignment, which protects equipment and lowers noise level. They help in reducing wear & tear on HVAC systems, absorb thermal expansion and reducing vibration.
Environmental systems : Rubber joints / Bellows are used such as water treatment, wastewater processing and HVAC networks to absorb mechanical and thermal movement, sealing against dust, dirt, moisture and other contaminants. They act as flexible connectors that protect pumps, valves and pipes from cracking or failing prematurely, they are durable and provide protection from harmful substances.
Chimneys : Rubber flexible expansion joints are used to absorb thermal expansion and contraction, isolate mechanical vibrations from fans or blowers and compensate for structural misalignment while maintaining a tight seal against escaping gases. They are widely used to provide efficient ways to relieve movement stresses, reduce noise at duct lines.
Water pipe lines : Bellows or Expansion Joints prevent abrupt damage of a pipeline due to vibrations, impact, fluid thudding etc. They are elastic connector for piping systems used for absorb vibration, compensate for pipeline movement and reduce system noise.
Why we are a trusted Indian Rubber Bellows manufacturing company
Royal Engineering Corporation is a trusted Indian Rubber Bellows manufacturing company, has focus on producing good quality Expansion Bellows, use advanced materials to enhance durability & performance, efficiently produce superior products. Our unique features are covered with the following :
High quality Bellows : We are manufactures high quality Bellows for various industrial applications. They are produced using suitable rubber materials and carefully controlled manufacturing processes. They provide excellent flexibility, durability and protection against dust, moisture, dirt and other contaminants. Our industrial Bellows are designed to deliver reliable performance and long lasting service in demanding environments.
Custom design solution : We provide customized Expansion Bellows according to specific industrial requirements. Customers can request different sizes, shapes, lengths, materials, thicknesses and mounting configurations based on their requirement. Our custom made Bellows are designed to provide proper fitting, flexibility and protection. We focus on practical solutions that meet individual application and equipment requirements effectively.
Durable product : Durability is an important feature of our industrial Rubber Expansion Joint. We use suitable rubber materials and reliable manufacturing methods to produce products capable of handling continuous movement, vibration, dust, moisture and demanding operating conditions. Our durable products provide dependable protection for machinery components while supporting long term performance and reducing frequent replacement requirements.
Quality focused manufacturing process : We follows a quality focused manufacturing process for producing reliable Rubber made Flexible Bellows. From material selection, molding, finishing and inspection, all important production stages are carefully monitored. We focus on dimensional accuracy, material quality, flexibility and consistent performance. This approach helps us manufacture industrial Bellows suitable for various machinery and applications.
Long experience in manufacturing : We have valuable experience in manufacturing industrial rubber products and Bellows or Flexible Rubber Joints. Our manufacturing knowledge helps us understand different application requirements, material specifications, dimensions and performance expectations. This experience supports the production of reliable standard and customized rubber bellows. We combine practical manufacturing expertise with quality focused processes to serve diverse industrial customers.
Customer’s reliability : This is an important part of our business approach, we focus on understanding customer requirements and supplying suitable Industrial pipelines Expansion Bellows with consistent quality. We maintain clear communication regarding specifications, quantities, customization and delivery. Our customer focused service aims to build long term business relationships with companies seeking dependable Rubber Expansion Bellows manufacturers and suppliers in India.
Quality certification : This is important when selecting a reliable Rubber Expansion Bellows supplier. We are certified with ISO 9001:2015 and focus on maintaining consistent manufacturing quality and appropriate quality control practices. Product specifications, material quality, dimensions and manufacturing consistency are carefully considered. Customers can discuss applicable standards and documentation requirements with us when selecting Bellows for specific industrial applications.
Best Price : Our aim to offer competitive Prices for high quality Bellows without unnecessarily compromising product reliability. Pricing depends on factors such as material, dimensions, quantity, design and customization requirements. Our focus is to provide customers with good overall value by combining suitable product quality, durability, performance and cost effective solutions for industrial applications.
Fast delivery : Timely delivery is important for industrial customers because delays can affect maintenance and production schedules. Our target is to process Rubber Expansion Joints orders efficiently according to customer requirements. Delivery time may vary depending on product type, quantity, customization, material and manufacturing complexity. We focus on proper production planning and communication to support timely product delivery.
User’s positive feedback : Customer feedback is valuable for understanding product performance and improving service quality. We welcomes feedback regarding Bellows quality, durability, flexibility, fitting, delivery and overall service. Positive customer experiences can help potential buyers evaluate suppliers. We aim to build long term relationship by providing reliable industrial duct line Bellows and responsive customer service.
